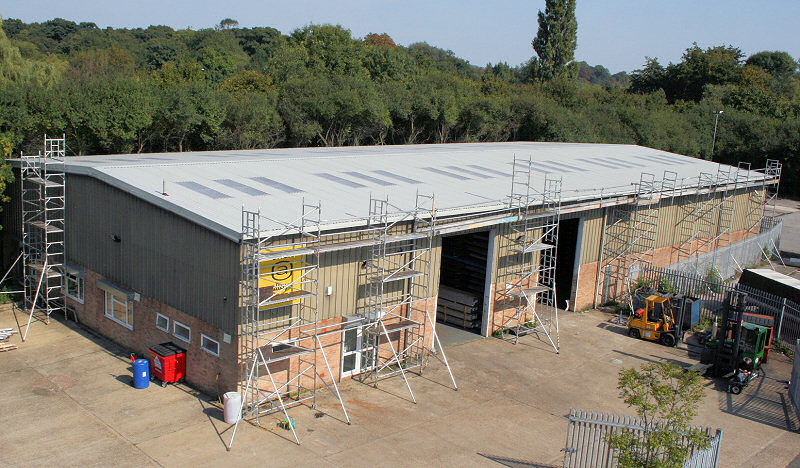

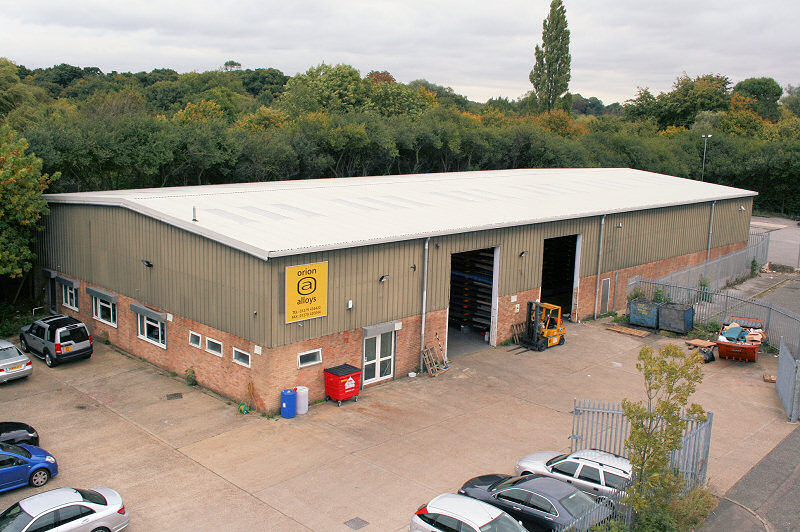

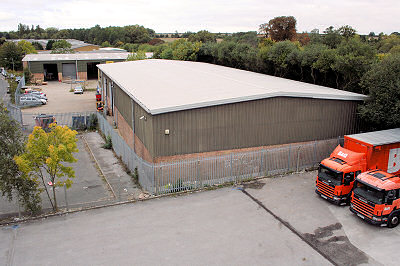

| Orion Alloys, Harlow, Essex Warehouse overroof. |

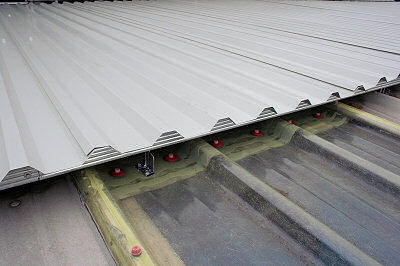

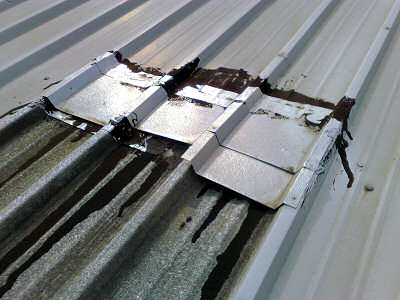

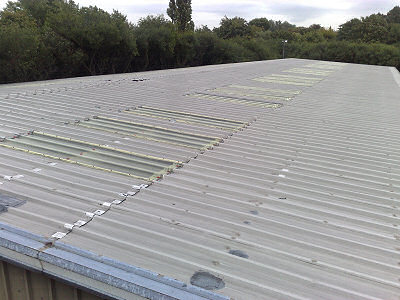

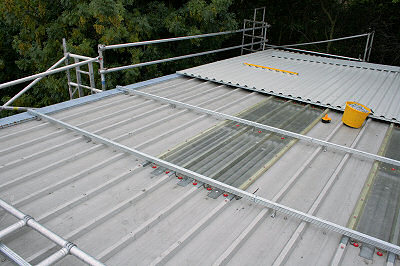

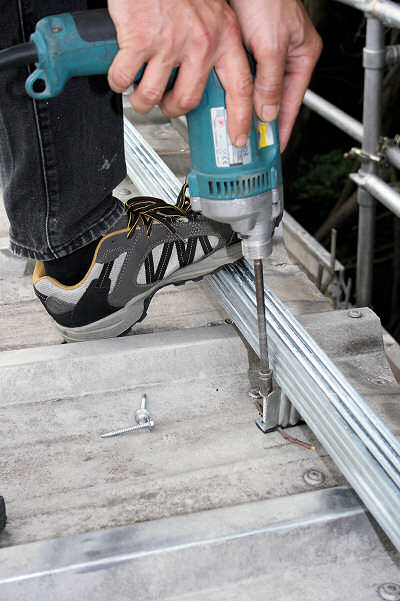

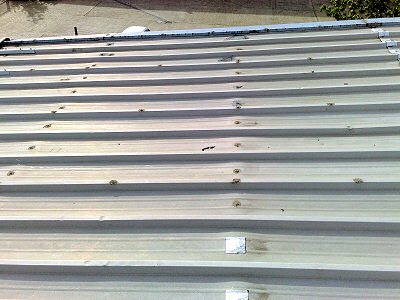

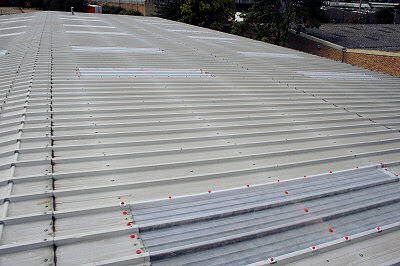

| The existing Aluminium Butler E Rib profiled roof sheeting had suffered from significant foot traffic damaged and thermal deformation result in a large number of random leaks. The discussion was taken to over roof with 940 sq. metres of 0.7mm Goosewing Grey 900/26 Hayes Cladding Ltd profiled sheets fixed to 100mm deep Euro bar support system. This profile was chosen so that the existing 900mm cover layout of rooflights could be maintained with new Class 3 profiled rooflights installed to match the existing configuration. |
 |

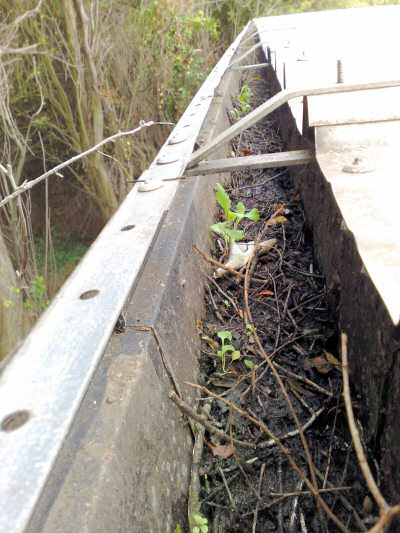

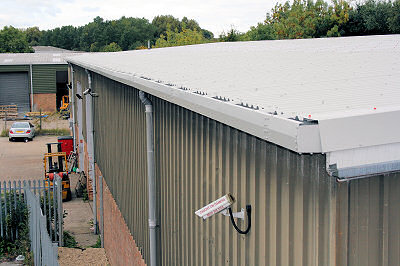

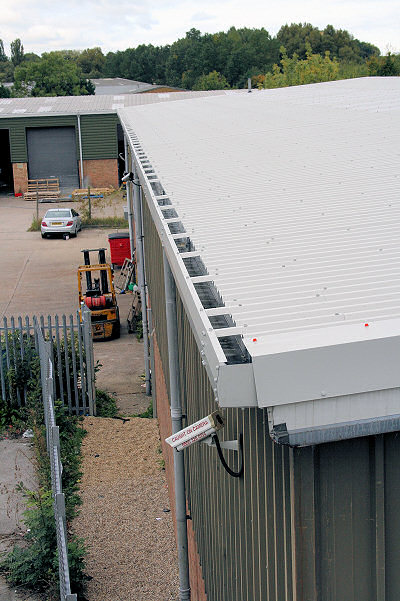

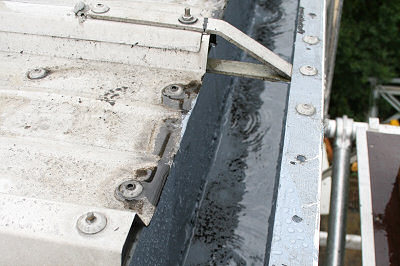

| New plastisol coated external eaves gutters and hanger and barge boards were also provided. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
