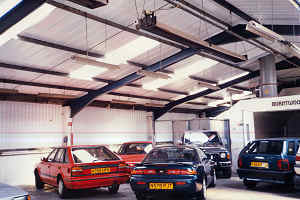

| Caledonian Nissan Poole Dorset. |
| 800 sq. metres of 0.4mm liner panel 1000 linear metres of support bar system 100mm insulation quilt and 800 sq metres of 0.7mm plastisol coated steel sheeting were supplied and installed on this project to refurbish the body shop of a Nissan dealership. |
 |
|
 |
 |
 |

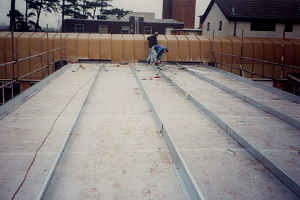

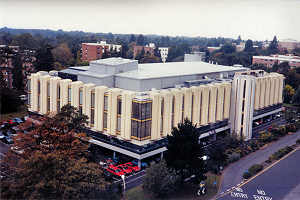

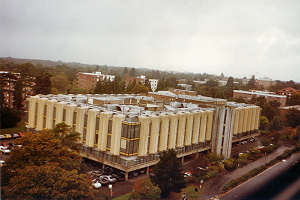

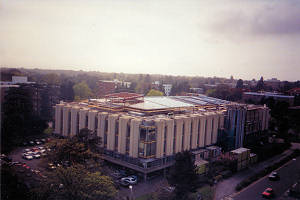

Liverpool Victoria formerly Frizzell House, Poole, Dorset. |
|---|
| The need to provide a new plant room and to upgrade the roof of this 40 year odd building resulted in the provision of an additional storey plant room. The 2200 sq. metre roof was formed from a 0.7mm walkable liner panel, ash grid support bar, 100mm high density insulation batts, breather membrane, vapour barrier with a top sheet of 0.6mm thick British Steel secret fix Stramit Speeddeck. |
|
|
|
| LEC Refrigeration Bognor Regis West Sussex. |
| Following tornado damage to 120 sq. metres of a 5 year old factory roof directly over production line. Temporary repair/weathering carried out on using Heras fencing and curtain sides from articulated lorries to enable production to restart. Youngman stagings scaffold boards and polyethylene were then added to offer a long term temporary weathering. The roof was then replaced in a shut down period latter in the year. |
|
|
|

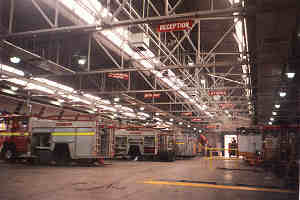

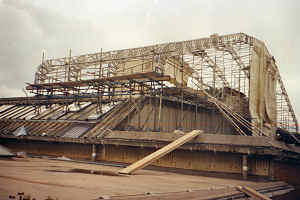

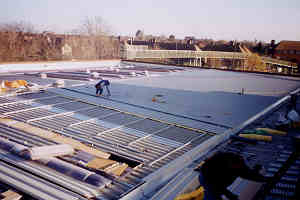

| London Fire and Civil Defence Authority Vehicle workshop and testing facility Ruislip London. |
| 2000 sq. metre strip and re-sheet of asbestos cement roof sheeting and replacement with a 0.7mm walkable liner panel, ash grid support bar, 100mm high density insulation batts, breather membrane, vapour barrier with a top sheet of 0.6mm thick British Steel secret fix Stramit Speeddeck. The existing wired glass roof-lights were replaced with triple glazed solar reflective glass in aluminium frames. All works were carried out under a temporary roof with fully boarded internal work platforms which was double sheeted to contain dust and debris during the stripping operation so that the facility could continue to operated throughout the construction phase of the works. |
|
|
|
| Maidstone 10 pin bowling centre Maidstone Kent. |
| Re-Roof of Atcost pre-cast concrete frame units. The roof installed was a SpeedDeck Soundroof. The specification for this roof construction which is designed to limit sound reverberation within the building includes, 0.7mm perforated walkable liner panel, ash grid support bar, 100mm high density acoustic insulation batts, breather membrane, aluminium foil vapour barrier with a top sheet of 0.6mm thick British Steel secret fix Stramit Speeddeck. |
|
|
|

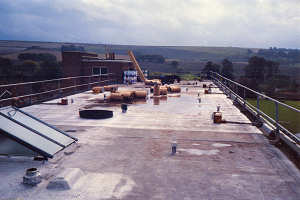

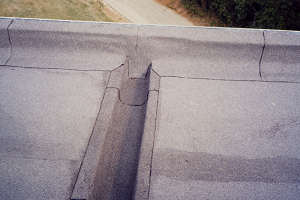

| MARKET LAVINGTON SCHOOL WILTSHIRE |
| The existing failing felt roof was overlaid with a new Calenders roll and pour HIGH PERFORMANCE MINERAL FELT ROOF SYSTEM ON LAID TO FALLS INSULATION boards. New cavity trays and lead damp course were also installed on the lift shaft motor room and water tankhouse. |
|
|
|

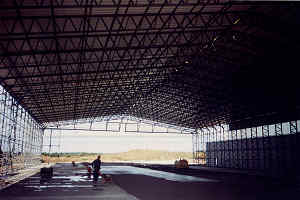

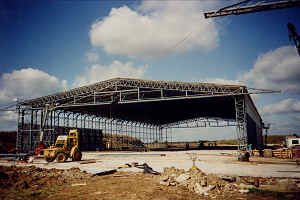

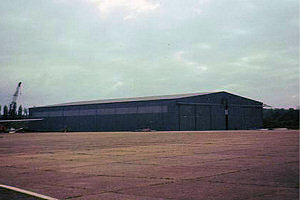

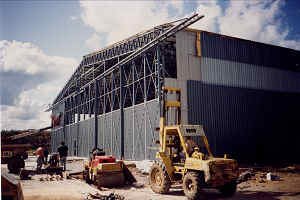

| Crystal Maze, Aces High Ltd, North Weald Airfield, Essex. |
| 8000 sq. metres of 0.4mm liner panel 10000 linear metres of support bar system 100mm insulation quilt and 8000 sq metres of 0.7mm plastisol coated steel sheeting were supplied and installed on this relocated T2 hangar. The steelwork was shot blasted treated and repainted on site before erection. External shadowline double sided plastisol eaves gutters were installed supported off of the new roof sheeting using purpose made support arm brackets. The hangar was originally used by a television company Chatsworth Television to film the channel 4 Crystal Maze series of programs hosted by Richard O’Brien before being used to house and restore aircraft. |
|
|
|

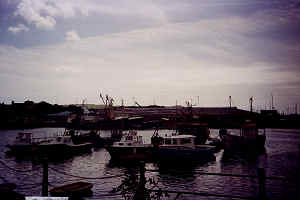

| Plymouth Fish Market, Devon. |
| New Build project. The roof specified and installed was a SpeedDeck Soundroof. The specification for this roof construction which is designed to limit sound reverberation within the building includes, 0.9mm aluminium perforated walkable liner panel, ash grid support bar, 100mm high density acoustic insulation batts, breather membrane, aluminium foil vapour barrier with a top sheet of 0.9mm thick stucco embossed aluminium secret fix Stramit Speeddeck. This specification was chosen because of the coastal location of the project and the need to limit noise within the market halls during auctions. |
|
|
|

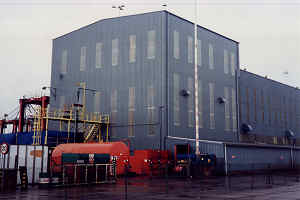

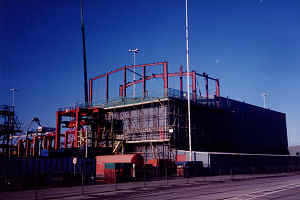

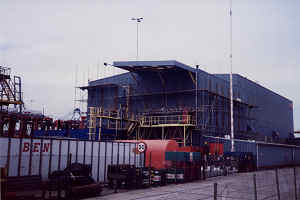

| SCT Southampton Container Terminals Southampton. |
| The need for greater headroom within the workshops to enable larger container cranes to be serviced resulted in the provision of an additional storey and high bay roller shutter door. 1200 sq. metres of roof and cladding was fixed formed from 0.4mm liner panel, ash grid support bar, 100mm insulation quilt and 0.55mm thick British Steel profiled steel top sheet. |
|
|
|

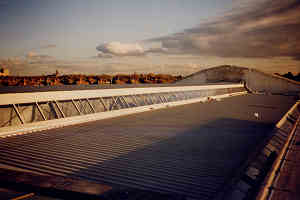

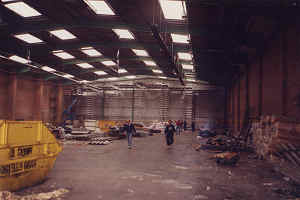

| Big Yellow Self Storage Company, Staples Corner, London. |
| Complete re roof and recladding. 12000 sq. metres of 0.4mm liner panel 20000 linear metres of support bar system 100mm insulation quilt and 12000 sq metres of 0.7mm plastisol coated steel sheeting were supplied and installed to replace roofing and cladding destroyed by the IRA bomb blast under the M1 A406 flyover at Staples corner in 1993. In addition we sold huge quantities of galvanised steel enclosures to provide new storage containers within the building. |
|
|
|

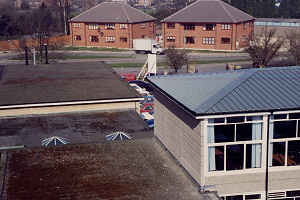

| Chichester Universty formerly Chichester Technology College Chichester West Sussex. |
| Flat to pitch conversion of a built up felt roof on a stramit straw board deck using a light weight steel work structure deck laid insulation quilt and a new roof covering of 0.6mm thick British Steel secret fix Stramit Speeddeck. External shadowline double sided plastisol eaves gutters were installed supported off of the new roof sheeting using purpose made support arm brackets. |
|
|
|
| Budmouth Technology College Weymouth Dorset. |
| The existing failing felt roof was overlaid with a new Calenders roll and pour HIGH PERFORMANCE MINERAL FELT ROOF SYSTEM ON LAID TO FALLS INSULATION boards. |
|
|
|
|
|
| Frenchay Hospital Bristol. Bow over eaves to eaves roof. |
| 800 sq. metres over roof of failing built up felt roofs using a light section galvanised steel purlin fixed into the existing decking vapour barrier and insulation quilt and a new roof covering of 0.6mm thick British Steel secret fix Stramit Speeddeck. External shadowline double sided plastisol eaves gutters were installed on both external elevations supported off of the new roof sheeting using purpose made support arm brackets. |
|
|
|
| Princess Margarets Hospital for Swindon NHS Trust. |
| Failing asphalt roof on concrete deck of the main operating theatre was flat to pitch converted using a hip ended roof configuration incorporating high density insulation batts, breather membrane, vapour barrier with a top sheet of 0.6mm thick British Steel secret fix Stramit Speeddeck. |
|
|
|

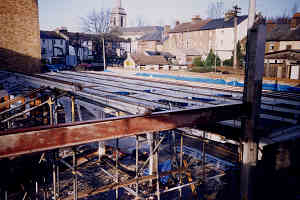

| New Malden, Surrey Industrial unit. |
| Over roof of 1300 sq. metres of existing failed secret fix roof sheeting and polycarbonate barrel volted rooflights using an ash grid proprietary support bar system 100mm insulation quilt and 0.7mm plastisol coated steel sheeting. The existing internal eaves gutters were overlaid with new GAM galvanised steel gutters and the external gutters were replaced with shadowline double sided plastisol eaves gutter supported off of the new roof sheeting used purpose made support arm brackets. |
|
|
|
| |
| |
|
|
|
|
